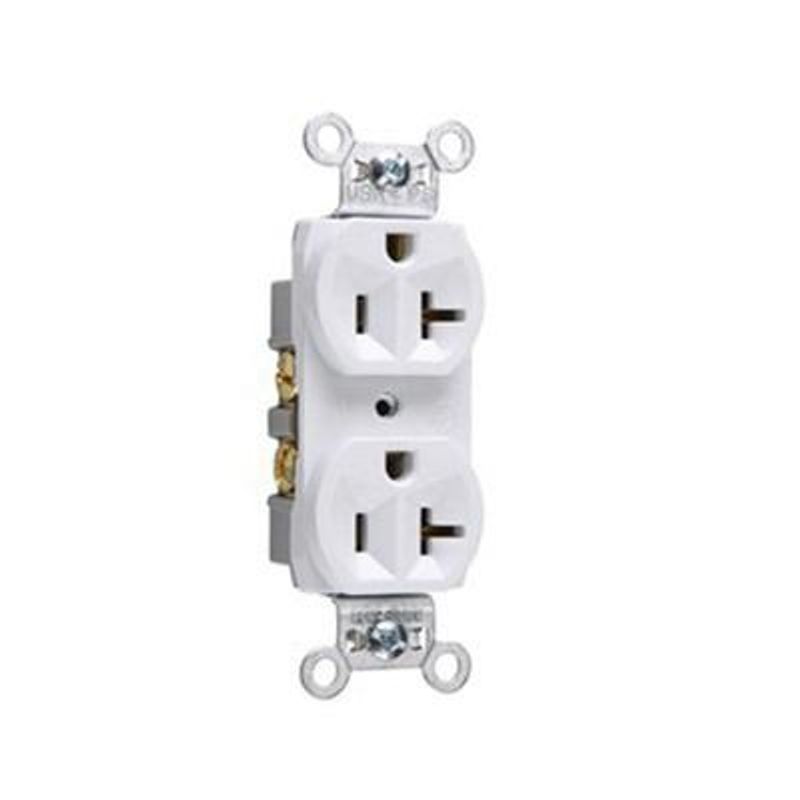

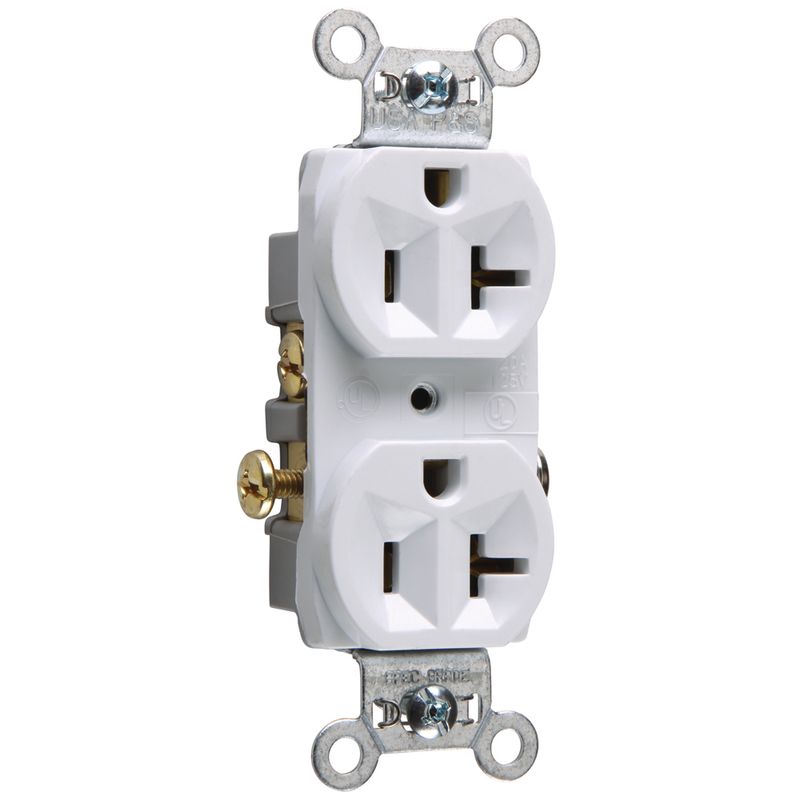

Pass & Seymour CR20-W Commercial Specification Grade Straight Blade Duplex Receptacle 20-Amp 125-Volt NEMA 5-20R White
SKU: 21007
Description
Commercial Spec Grade Duplex Receptacle with side wireis corrosion-resistant with aplated steel strap locked in to face and back body to resist pulling away from face/body assembly. It has aneasily accessed break-off, line-contact connecting tab for fast foreasy split-circuit wiring. It also has an impact-resistant nylon face and thermoplastic back body. 20amp, 125volt, White.
Number Of Poles
2
Style
Duplex
Grade
Commercial/Specification
Dimensions
1.322 Inch Width x 1.018 Inch Depth
Number Of Wires
3
Wire Size
4
NEMA Rating
5-20R
Dielectric Strength
1500 Volt
NEMA Configuration
NEMA 5-20R
Contact Material
Brass
UOM
ea
Terminal Connection
Side Wired
Strap Material
Zinc Plated Steel
Brand Name
Legrand
Product Name
Pass & Seymour CR20-W Commercial Specification Grade Straight Blade Duplex Receptacle 20-Amp 125-Volt NEMA 5-20R White
Short Description
PS CR20-W 20A 125V 5-20R DPLX RCPT
Long Description
Commercial Spec Grade Duplex Receptacle with side wireis corrosion-resistant with aplated steel strap locked in to face and back body to resist pulling away from face/body assembly. It has aneasily accessed break-off, line-contact connecting tab for fast foreasy split-circuit wiring. It also has an impact-resistant nylon face and thermoplastic back body. 20amp, 125volt, White.
Manufacturer Part Number
CR20W
Commodity Code
51200
Size
3.3 in
Amperage Rating
20 A
Country of Origin
MX
Temperature Rating
-40 to 50 deg C
RoHS Indicator
C
Special Features
Side wire, Duplex, tri-driver terminal &Mountingscrews
Mounting
Wall
Manufacturer Name
Legrand-Pass & Seymour
Application
Residential/Commercial
IDW Item Control Number
785007119183
Voltage Rating
125 V
Connection
Wire Ground
Gross Weight
0.1880 POUND
Type
Straight Blade Receptacle
Environmental Conditions
V2 Flammability Rated Per UL94
UNSPSC
39121406
Invoice Description
RECEP DUP 20A/125V SIDE WIRE WH
Conductor Size
14-10 AWG
Sub Brand
Pass & Seymour
Standard
UL 498
Color
White
Material
Thermoplastic
